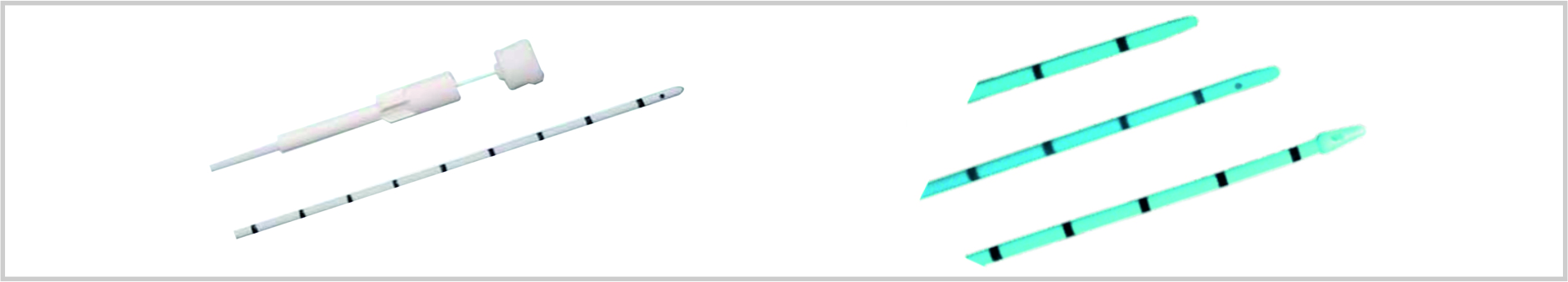

URETERAL CATHETER
Applications
Ureteral Catheters are used to insert into the ureter to prevent obstruction of the urine flow.Catheters are made and design using finest quality polyurethane material.
Catheter inserted into the ureter, either through urethra and bladder or posteriorly via kidney,used for drainage, retrograde pyeogram, atraumatic of ureteral orifice & navigation of torturous ureter, ureteral dilatation.
Key Features
Open end tip allows placement over guide-wire for negotiation of a looped or stenotic (torturous) ureter.
Bulb tip configuration concludes orifice and stabilize catheter by temporarily wedging in.
Angled tip allows the passage of the catheter pass a ureteral stone in preparation for ESWL smooth surface for easy insertion.
Variants
OE - One end |
CE - Closed end |
BT - Bulb Tip |
Sizes
| Size (in Fr): |
3 |
4 |
5 |
6 |
| Length (in cms): |
70 |
Recommended Guide Wire (in inch) 0.018" to 0.038"
Other sizes can be provided on request

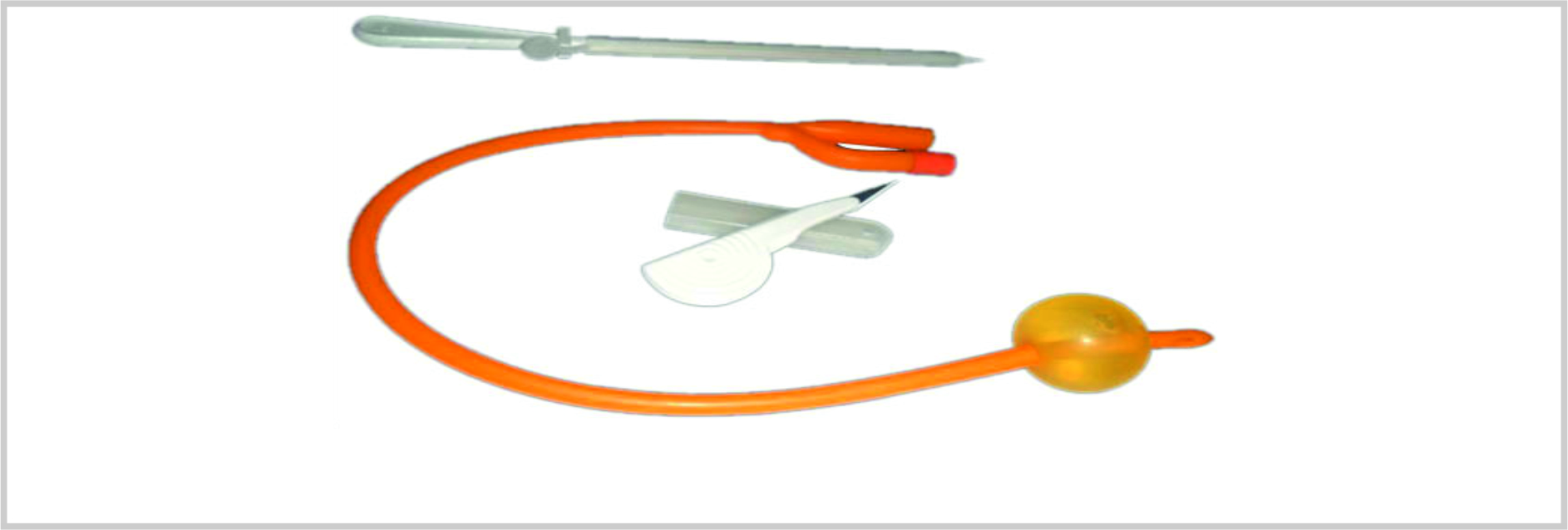

SUPRAPUBLC CATHETER SET
SUPRAPUBLC PUNCTURE AND DRLNAGE SET
Applications
Used For precutaneous suprapubic urinary bladder catheterization to relive urinary bladder retention.
Key Features
Ldeal for urinary bladder drainage is required in emergency situation.
Helpful when urethral catheterization is not possible.
Comprehensive procedural kit for easy use.
Sizes
| Size (in Fr): |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
| Length (in cms): |
20 - 25 |

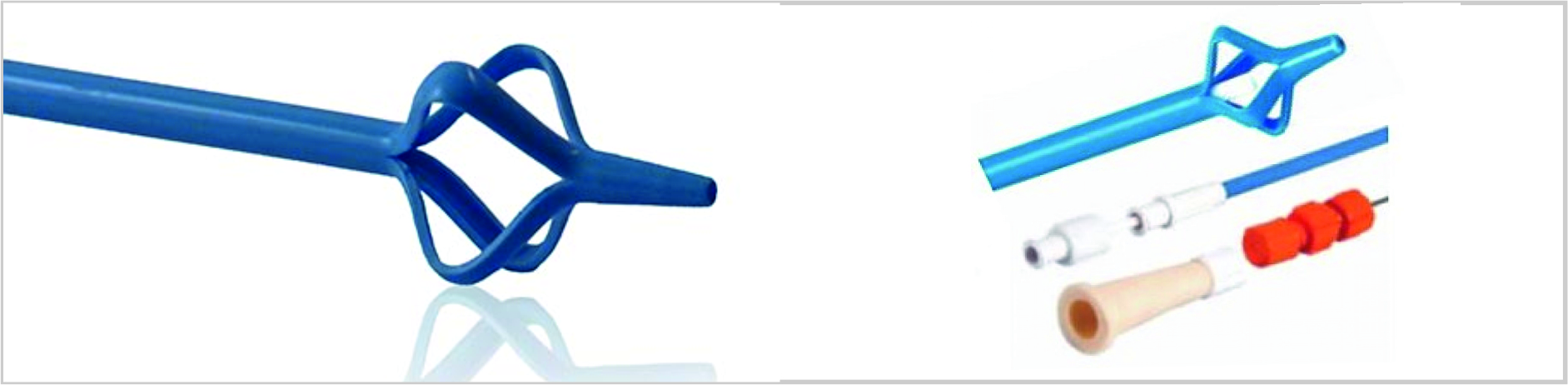

MALECOT CATHETER
Applications
Used For precutaneous Placement of a malecot catheter in the renal pelvis for nephrostormy drainage. this a winged type catheter like a mushroom with slots in it. These catheters are best for drainage of thick viscous fluids. It is generally used to provide drainge following open renal or bladder surgery.
Key Features
Highly Radiopaque for better visualization.
Malecot flower design enhance drainage and promote catheter retention.
Round tip malecot catheters reduces the trauma to the tissues.
Malecot flower design is ideally suited for the drainage of thick viscous fluid.
Sizes
| Size (in Fr): |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
| Length (in cms): |
22 |
26 |
30 |
Percutaneous Malecot Nephrostomy Catheter Set
Recommended Guide Wire (in Inch) 0.038" J tip
*Malecot Catheter + Initial Puncture Needle + Guide Wire + Urine bag Connector + Fascial Dilators + Scalpel

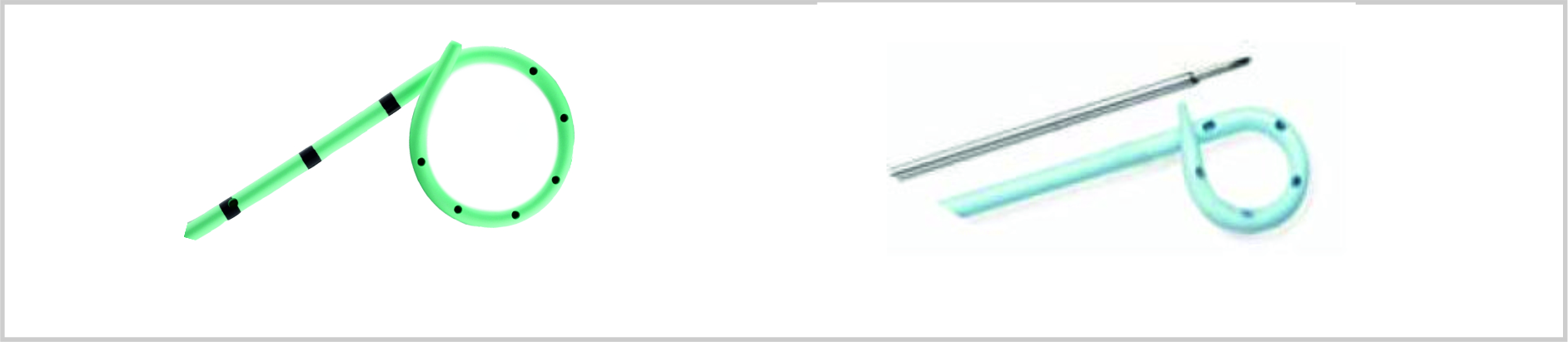

PIGTAIL CATHETER
Applications
Used for the temporary or permanent drainage & irrigation of urine for kidney direct puncture in presence of distal obstruction..
Used for the temporary drainage of urine from kidney direct by percutaneous placement, in the presence of distal obstruction puncture in Pigtail Nephrostomy Catheter
Key Features
Highly radiopaque for better visualization
Pigtail tip configuration for the retention of the distal tip in the renal pelvis.
Locking types has more retention and can be kept for no longer duration.
Soft Flexible material for patient’s comfort.
Sizes
| Size (in Fr): |
6 |
7 |
8 |
9 |
10 |
12 |
14 |
16 |
| Length (in cms): |
26 |
30 |
Percutaneous Pigtail Nephrostomy Catheter Set
Recommended Guide Wire (in Inch) 0.038* J tip
Other sizes can be provided on request
Percutaneous Pigtail Nephrostomy Catheter Set
*Pigtail Catheter – 22cm + IP Needle + Guide wire + Urine bag Connector + Facial Dilators + Clamp
